HY2120
Two-Cell Li-ion/Polymer Battery Protection

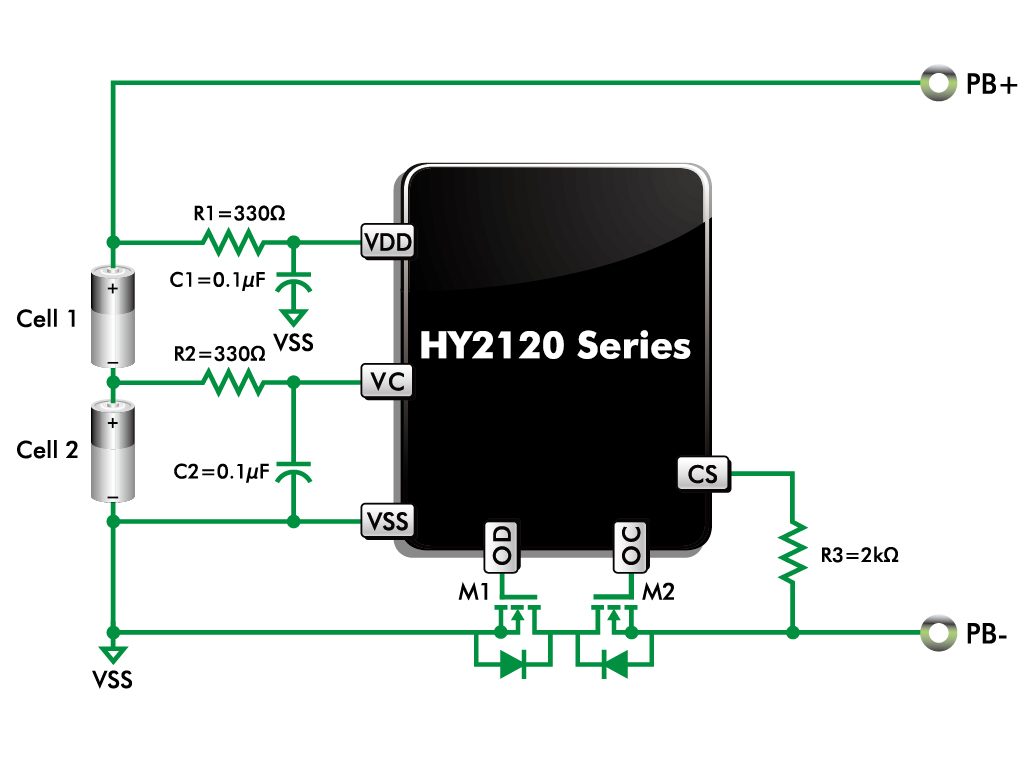

HY2120 Series Features
  • Built-in high precision voltage detection circuit and delay circuit
  • Low current consumption:
    • Operation mode < 9μA (VDD=7.8V)
    • Sleep mode < 0.1μA (VDD=4.0V)
  • Charger connected pin adopts high-withstand-voltage design (CS/OC pin absolute max. rating: 33V)
  • 0V battery charge function: “Available” or “Unavailable” is optional
  • Small package: SOT-23-6
  • Wide operation temperature range: -40℃~+85℃
  • All products are in Green packages: Pb & Halogen-free
  • Auto overdischange recovery function “Yes” or “No” is selectable

Package Type SOT-23-6 DataSheet

Product Name Overcharge  Detection Voltage
VCU
Overcharge  Release   Voltage
VCR
Overdischarge  Detection  Voltage
VDL
Overdischarge  Release   Voltage
VDR
Discharge  Overcurrent  Detection  Voltage
VDIP
Short Circuit Detection Voltage
VSIP
Charge
Overcurrent
Detection
Voltage
VCIP
0V Battery  Charge  Function V0CH Overcharge Detection Delay Time  TOC Overdischarge Detection
Delay Time
TOD
Discharge Overcurrent Detection Delay Time TDIP Charge Overcurrent Detection Delay Time TCIP Load Short Circuiting Detection Delay Time  TSIP Power-down Function/         Auto Overdischarge Recovery Function
Notice(1)
Over-charge release mode
HY2120-AB 4.350 V 4.150 V 2.300 V 3.000 V 300 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-BB 4.350 V 4.150 V 2.300 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-CB 4.280 V 4.080 V 2.900 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-DB 4.280 V 4.080 V 2.250 V 2.950 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-EB 4.280 V 4.080 V 2.250 V 2.920 V 150 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-FB 4.300 V 4.100 V 2.900 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-GB 4.280 V 4.080 V 3.100 V 3.200 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-HB 4.380 V 4.180 V 2.400 V 2.600 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs A Unavailable
HY2120-KB 4.280 V 4.080 V 2.800 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs A Available
HY2120-LB 4.250 V 4.050 V 2.800 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Available
HY2120-MB 4.450 V 4.250 V 2.250 V 2.950 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-NB 4.280 V 4.080 V 2.800 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs A Available
HY2120-OB 4.250 V 4.050 V 2.800 V 3.000 V 100 mV 1.0V -100 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs A Available
HY2120-PB 4.250 V 4.050 V 2.400 V 3.000 V 200 mV 1.0V -210 mV Availabel 1000 ms 110 ms 10 ms 7 ms 250 µs A Availabel
HY2120-QB 4.280 V 4.080 V 2.900 V 3.000 V 200 mV 1.0V -210 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-RB* 4.400 V 4.250 V 2.500 V 3.000 V 180 mV 0.5V -170 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-SB 4.450 V 4.300 V 2.500 V 3.000 V 180 mV 0.5V -170 mV Available 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable
HY2120-WB* 4.275 V 4.150 V 2.600 V 2.600 V 250 mV 1.0V -210 mV Availabel 1000 ms 110 ms 10 ms 7 ms 250 µs P Unavailable

Notice(1):Power-down Function=P;Auto Overdischarge Recovery Function=A

Notice(2):Models that marked “*” are customized models.

SelectionGuide
