HY2116
One-Cell Li-ion/Polymer Battery Protection

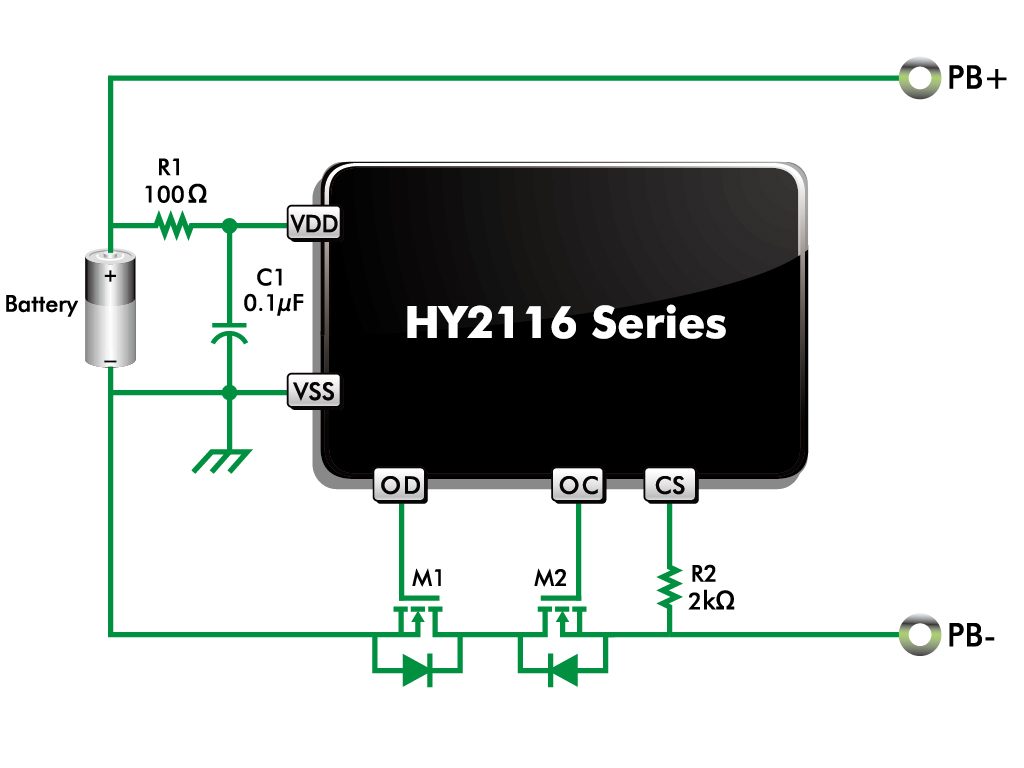

Applications
  • 1-cell lithium-ion rechargeable battery packs
  • 1-cell lithium polymer rechargeable battery packs
Main Features of HY2116 Series
  • Built-in high precision voltage detection circuit and delay circuit
  • High precision charge/discharge overcurrent detection voltage is flexibly configurable
  • Low current consumption: Operation mode < 6μA (VDD=3.9V) / Sleep mode < 0.1μA (VDD=2.0V)
  • Charger connected pin adopts high-withstand-voltage design (CS/OC pin absolute max. rating: 20V)
  • 0V battery charge function: “Available” or “Unavailable” is optional
  • Auto overdischarge recovery function “Yes” or “No” is selectable
  • Small package: SOT-23-6 & DFN 6 (1.8mm x 2.0mm) & DFN6 SON(1.6*1.6mm)
  • Wide operation temperature range: -40℃ to +85℃
  • All products are in Green packages: Pb & Halogen- free
  • Product quality ensures customer production defect rate < 50ppm

Package Type SOT-23-6   DataSheet

Product Name Overcharge  Detection Voltage VCU Overcharge  Release   Voltage
VCR
Overcharge  Detection  Voltage
VDL
Overcharge  Release   Voltage
VDR
Discharge  Overcurrent  Detection  Voltage  VDIP Short Circuit Detection
Voltage
VSIP
Charge
Overcurrent
Detection
Voltage
VCIP
0V Battery  Charge  Function V0CH Overcharge Detection Delay Time
TOC
Overdischarge Detection Delay Time
TOD
Discharge Overcurrent Detection Delay Time
TDIP
Charge Overcurrent Detection Delay Time TCIP Load Short Circuiting Detection Delay Time  TSIP Power-down Function/
Auto Overdischarge Recovery Function     Notice(1)
Over-charge release mode
HY2116-AB6B 4.280 V 4.100 V 2.400 V 2.500 V 180 mV 0.85 V -225 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-BB6A 4.350 V 4.150 V 2.500 V 3.000 V 150 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs P Unavailable
HY2116-CB6B* 4.280 V 4.100 V 2.300 V 2.500 V 150 mV 0.85 V -225 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-DB6B 4.275 V 4.175 V 3.000 V 3.200 V 150 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-FB5B 4.300 V 4.250 V 2.500 V 3.000 V 200 mV 0.85 V -225 mV Available 1000 ms 145 ms 24 ms 16 ms 300 µs A Unavailable
HY2116-HB2B 4.420 V 4.235 V 2.500 V 2.700 V 200 mV 0.85 V -225 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-OB6A 4.425 V 4.225 V 2.500 V 2.500 V 150 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs P Unavailable
HY2116-GB2B* 4.425 V 4.275 V 2.800 V 3.000 V 225 mV 0.85 V -225 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-HB6B* 4.420 V 4.235 V 2.500 V 2.700 V 200 mV 0.85 V -225 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-IB6B* 4.275 V 4.175 V 3.000 V 3.200 V 150 mV 0.85 V -150 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-KB6B* 4.425 V 4.225 V 2.500 V 2.900 V 150 mV 0.85 V -150 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-PB6B* 4.250 V 4.050 V 2.500 V 3.000 V 200 mV 0.85 V -100 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-JB6B* 4.425 V 4.225 V 2.500 V 2.900 V 200 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-EB6B* 4.475 V 4.275 V 2.500 V 2.900 V 150 mV 0.85 V -150 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-SB6B* 4.475 V 4.275 V 2.500 V 2.900 V 200 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-UB2B* 4.475 V 4.275 V 2.500 V 2.700 V 225 mV 0.85 V -200 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable

Notice(1):Power-down Function=P;Auto Overdischarge Recovery Function=A

Notice(2):Models that marked  “*” are customized models.

Package Type  DFN6 (1.8X2.0mm)   DataSheet

Product Name Overcharge  Detection Voltage VCU Overcharge  Release   Voltage
VCR
Overcharge  Detection  Voltage
VDL
Overcharge  Release   Voltage
VDR
Discharge  Overcurrent  Detection  Voltage  VDIP Short Circuit Detection
Voltage
VSIP
Charge
Overcurrent
Detection
Voltage
VCIP
0V Battery  Charge  Function V0CH Overcharge Detection Delay Time
TOC
Overdischarge Detection Delay Time
TOD
Discharge Overcurrent Detection Delay Time
TDIP
Charge Overcurrent Detection Delay Time TCIP Load Short Circuiting Detection Delay Time  TSIP Power-down Function/
Auto Overdischarge Recovery Function     Notice(1)
Over-charge release mode
HY2116-GA2B 4.425 V 4.275 V 2.800 V 3.000 V 225 mV 0.85 V -225 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-HA2B 4.420 V 4.235 V 2.500 V 2.700 V 200 mV 0.85 V -225 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-OA6B 4.425 V 4.225 V 2.500 V 2.500 V 150 mV 0.85 V -200 mV Available 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-UA2B 4.475 V 4.275 V 2.500 V 2.700 V 225 mV 0.85 V -200 mV Available 1000 ms 20 ms 12 ms 8 ms 300 µs A Unavailable

Notice(1):Power-down Function=P;Auto Overdischarge Recovery Function=A

Package Type  SON(1.6*1.6mm)   DataSheet

Product Name Overcharge  Detection Voltage VCU Overcharge  Release   Voltage
VCR
Overcharge  Detection  Voltage
VDL
Overcharge  Release   Voltage
VDR
Discharge  Overcurrent  Detection  Voltage  VDIP Short Circuit Detection
Voltage
VSIP
Charge
Overcurrent
Detection
Voltage
VCIP
0V Battery  Charge  Function V0CH Overcharge Detection Delay Time
TOC
Overdischarge Detection Delay Time
TOD
Discharge Overcurrent Detection Delay Time
TDIP
Charge Overcurrent Detection Delay Time TCIP Load Short Circuiting Detection Delay Time  TSIP Power-down Function/
Auto Overdischarge Recovery Function     Notice(1)
Over-charge release mode
HY2116-EH6B* 4.475 V 4.275 V 2.500 V 2.900 V 150 mV 0.85 V -150 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-GH6A* 4.280 V 4.080 V 3.000 V 3.000 V 75 mV 0.85 V -100 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-HH6B 4.425 V 4.225 V 2.500 V 2.900 V 150 mV 0.85 V -150 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable
HY2116-IH6B* 4.275 V 4.175 V 3.000 V 3.200 V 15 mV 0.85 V -150 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs P Unavailable
HY2116-KH6B* 4.420 V 4.235 V 2.500 V 2.700 V 200 mV 0.85 V -225 mV Availabel 1000 ms 145 ms 12 ms 8 ms 300 µs A Unavailable

Notice(1):Power-down Function=P;Auto Overdischarge Recovery Function=A

Notice(2) Models that marked “ *” are customized models.
